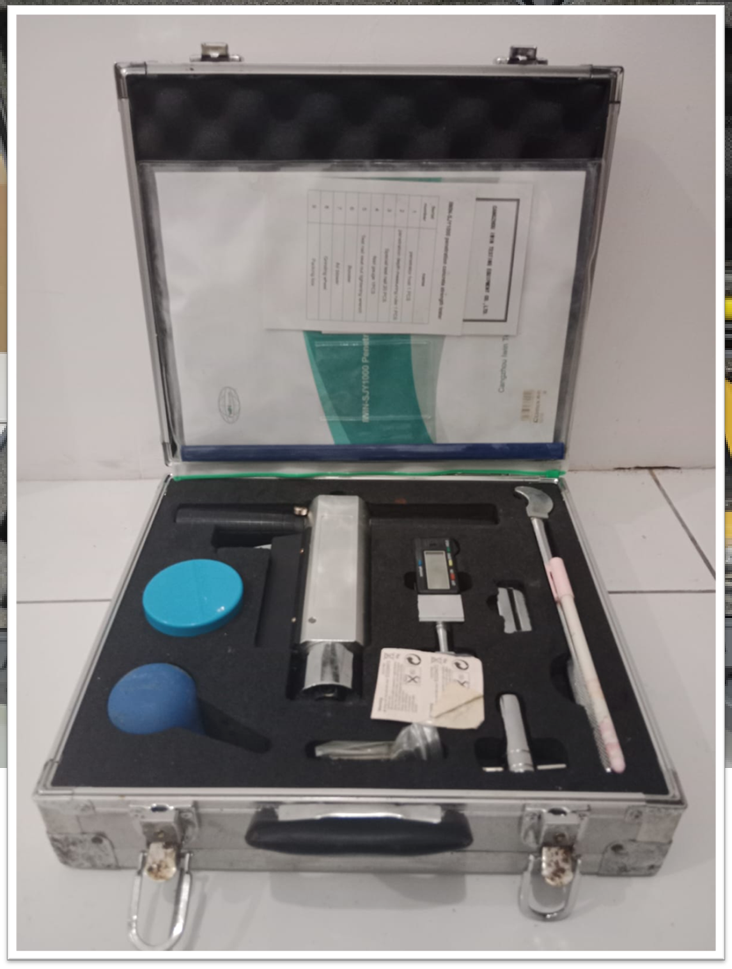

WINDSOR PROBE TEST
$75.00
For on-site strength testing of normal and high performance concrete.
Applications:
- Structural analysis
- Determination of strength of lightweight concrete
- Determination of strength of standard concrete
- Determination of strength of high strength concrete
- High precision determination
Accurately and effectively measure the compressive strength of concrete, in the field.
The Windsor ® HP Probe system quickly and accurately determines the concrete compressive strength of a structure by driving the probe into the concrete with a known amount of force. Upgraded and improved over thirty years, this modern system is capable of measuring concrete with a maximum compressive strength of 17,000 PSI (110MPA). It has been ruggedized for use in construction environments, yet refined to provide users with a simpler system to operate. An electronic measuring unit has been added to help ensure precise test results that can be recorded for later review or uploaded to a personal computer.
Two probe styles are available: one for lightweight, low-density concrete with air-filled aggregates and the other probe for more standard mix designs. Also, two standard power settings facilitate testing of fresh concrete as well as mature mixes.
Features & Benefits:
- New electronic measurement system improves accuracy and efficiency
- Measurement up to 17000 PSI (110 MPa)
- Safe: no accidental discharge and no recoil
- Quick and economical use
- Determines concrete development strength; improves safety, ensures quality
- Larger Lightweight Drive Template Protects Users from Debris
- Monitors strength for rehabilitation as concrete ages
- Conforms to ASTM C-803 and other authorized tests
